Brand: Catalac 900

Join Our Mailing List

Be notified first when new cataramans for sale are added. The majority of catamaran owners want cash and will not consider trades. Trades will not be considered unless their advertisement specifically says otherwise.

After Tom Lack’s Catalac production ended in the mid 1980’s, the company was reformed in the early ’90’s under the new name, Blue Water Catalacs. The old Catalac 9M moulds were sourced and it was possible to put the boat back into production under the new ‘Catalac 900 banner. The Catalac 900 was a major rework of the twenty year old Catalac 9M design, with a sleeker and more modern look, achieved mainly by the removal of the old individual aluminum framed windows and replacing them with sealed full length tinted Perspex ones. The boat featured other refinements like an enclosed helm, hot and cold running water as standard and the fitting of twin diesels (either Volvo or Yanmar units) with saildrive transmissions as standard equipment. Replacing the old shaft drive setup meant the engines were now mounted further towards the rear, allowing for a huge lazarette on the starboard side and allowing more space in the port side rear cabin.

Please see our information page for more details.

Specifications
Make:Catalac
Model:900
Length:30
Builder:Blue Water Catalacs
Designer:Tom Lack
Construction:solid fiberglass hull; cored deck
Build Start:1993
Build End:1997
Number Built:Production started 1993: 20 manufactured; 2 located Americas.
Loa:30'ft (9.1 meters)
Lwl:27' 10" (8/53 meters)
Beam:13'11"" (4/27 meters)
Headroom:Headroom in saloon and hulls 6’ 3”
Draft:2'6"
Displacement:8,000 lbs dry
Mast Height:above water: 40'
Mfg Engines:Twin sail drives: various manufacturers 2x10hp Volvo, or 2 Yanmar 2YM (14hp) diesels or Nanni 2x14hp

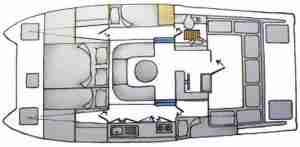

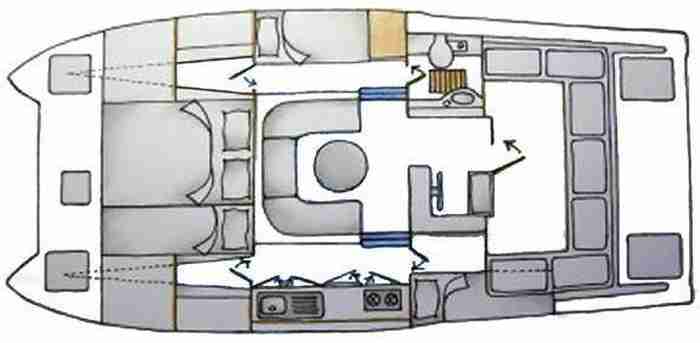

Mfg Accommodations:
  • 1-double cabin forward starboard hull
  • 1 plan was made 1-single cabin rear port hull (quarter berth)
  • 1-single cabin forward port hull
  • 1-double berth using settee and table
  • 1-head located rear starboard hull
  • Galley located in port hull
  • Nav station located mid starboard hull

Catalac 900 Information

Catalac 900 Ocean passage After Tom Lack’s Catalac production ended in the mid 1980’s, the company was reformed in the early ’90’s under the new name, Blue Water Catalacs.  The old Catalac 9M moulds were sourced and it was possible to put the boat back into production under the new ‘Catalac 900 banner. The Catalac 900 was a major rework of the twenty year old Catalac 9M design, with a sleeker and more modern look, achieved mainly by the removal of the old individual aluminum framed windows and replacing them with sealed full length tinted Perspex ones. The boat featured other refinements like an enclosed helm,  hot and cold running water as standard and the fitting of twin diesels (either Volvo or Yanmar units) with saildrive transmissions as standard equipment. Replacing the old shaft drive setup meant the engines were now mounted further towards the rear, allowing for a huge […]

Catalac 900 Review

by Terry Kennedy The Catalac 900 is the pilothouse version of the Catalac 9M. The pilothouse not only allows for the helm to be inside, but offers standing head room around the salon. The Catalac 900 is a warm, dry and comfortable vessel when inclement weather arrives. This is a dramatic difference from the 8M and 9M’s with their helms exposed to the weather in the cockpits, and their low ceilings in the salon area that only allows for sitting. Naval Architect John Winterbotham designed the hull for the Catalac 8M/9M/900 based on the Sunderland, a British WWII era sea plane. By design, the vessels will slip sideways when the wind is strong rather than lift the windward hull. Because of this wide flared load bearing design, and significant storage space, the Catalacs are easily overloaded. They can hold a lot of weight without squatting down in the water and showing […]

Crossing the Atlantic Ocean on the Catalac 900 – S/V Horizons

continued from page 1 by Jeff & Diane Curran We were making good progress, averaging 90 miles but after 5 days the wind died and we were then faced with the prospect of grossly exceeding our ETA at Barbados. The last thing we wanted to happen was for our girls back in the UK to become worried because were unable to contact them or let them know in any way that we were ok (in fact, this became the greatest concern during the trip). In hindsight we should have invested in a SAT-phone for such an eventuality. Actually, we set off with a five day weather forecast and with only VHF aboard, called up the occasional passing ship for an up to date forecast. We deployed the Cruising Shute, something we thought would never be needed for this passage, particularly as the Trade Winds should have been firmly set for […]

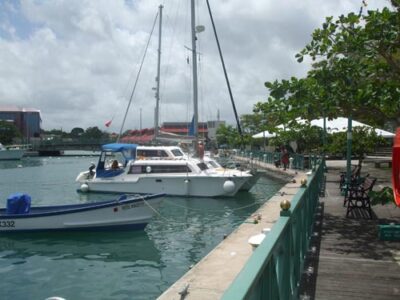

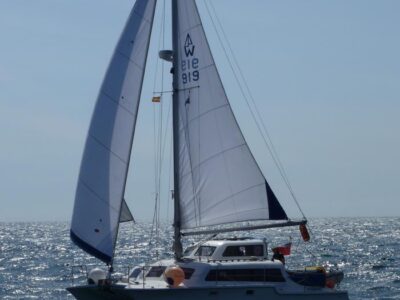

Crossing the Atlantic Ocean on the Catalac 900 – S/V Horizons

by Jeff & Diane Curran (Jeff and Diane were kind enough to share the story of their Atlantic crossing in 2013 aboard S/V Horizons, their Catalac 900 catamaran. – Rick In 2012 Jeff reached the Canaries aboard Horizons a Catalac 900 having sailed from Madeira single handed. It was not without some difficulties, gale force winds certainly helped him on his way but halfway through the journey the electronic auto helm broke. Hove to, a repair was attempted but it became apparent that the wheel pilot motor had burnt out. There was nothing more to do than get some well earned rest whilst hove-to before continuing the journey by hand steering. Horizons finally reached the anchorage at Playa Blanca in Lanzarote on the evening of 10th November where a decent meal and sleep were the order of priorities before going into Marina Rubicon the next morning in order to have the […]
