Specifications | |
Make: | Gemini |
Model: | 3400 |
Length: | 34 |
Builder: | Performance Cruising Inc. (Mayo, MD, USA) |
Designer: | Tony Smith |
Construction: | Molded hull and deck with large single interior mold over the bridgedeck coming back from the forward bulkhead to the aft lockers. Glassed into the bridgedeck prior to lifting. Hull and deck are mechanically and chemically bonded with a polyester putty and bolts and backing nuts every four inches with a double gunwhale guard over the bond. Hull is laminate of woven roving and matt with polyester resin over an initial layer of gel coat with vinylester resin and a veil of fiberglass fabric for blister protection. Deck has half inch end grain balsa sandwich on the foredeck, around cockpit and across the cabin top. Deck fitting are drilled through solid glass. |
Build Start: | 1993 |
Build End: | 1995 |
Mfg Price: | $91,400 (40HP Tohatsu outboard) / $99,500 (27HP Westerbeke inboard) |
Loa: | 33' 4" (10.16 m) |
Lwl: | 29' 6" (9.0 m) |
Beam: | 14' 0" (4.27 m) |
Headroom: | 6' 3" everywhere |
Draft: | Max Draft: 5' ( 1.37 m) / Min Draft: 1' 6" ( .46 m); centerboards are mahogany plywood 2 inch thick, simple rope and rum lift. Underhung spade rudders which are adjustable and kick up. |
Displacement: | 7,300 lbs (3,312 kgs) |
Mast Height: | 45' 0" (13.72 m) |
Speed: | 6 knots cruise |
Mfg Engines: | 40 HP Tohatsu outboard / 27 HP Westerbeke inboard diesel and sonic drive hydraulically lifted propeller leg |

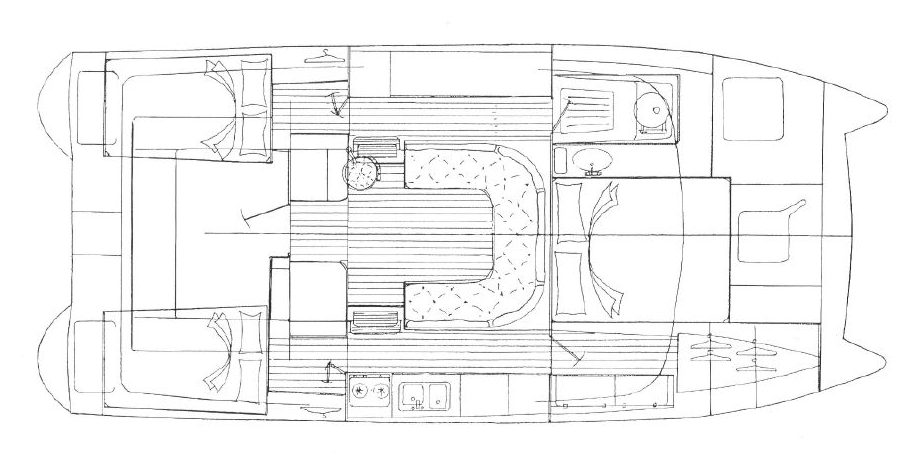

Mfg Accommodations: | Galley is in the starboard hull well away from traffic and with a panoramic view through the wide cabin windows. The master cabin houses a king sized berth and two additional double berths are located in each of the hulls aft. Single head to port forward. |
