Lagoon 560 is a Fort Lauderdale, Florida based 2017 Lagoon 560 For Sale By Broker. Responses to inquiries may come from a broker who is representing the owner as a fiduciary. This owner requires financial settlement only. No trades.
Step aboard the Lagoon 560 S2, a premier sailing catamaran that blends luxury, performance, and smart design.
Created by VPLP and styled by Nauta Design, this model offers unrivaled comfort and versatility for its class.
The S2 version includes up to five private cabins and a choice between a center island galley or port hull configuration, making it perfect for families, guests, or charter use.
Built for hospitable cruising, the Lagoon 560 S2 also features separate crew accommodations, ensuring both privacy and top-tier service onboard.
With spacious living areas, sleek styling, and exceptional sailing performance, this catamaran is ideal for those seeking adventure without sacrificing comfort.
Specifications
| Name | Lagoon 560 |
| Make | Lagoon |
| Model | 560 |
| Year | 2017 |
| Type | Multihull Sailboat |
| Cabins | 5 |
| Heads | 5 |
Dimensions
| Loa | 17,07 m / 56' |
| Beam | 9,44 m / 31' |
| Draft | 1,50 m / 4'11'' |
| Mast Height | 28,66 m / 94' |
Tankage
| Fuel Tanks | 344 gal |
| Water Tanks | 252 gal |
Performance
| Engines | 2 x 110 YANMAR 4JH4 2016 |
| Displacement | 30,3 t / 66,800 Lbs |

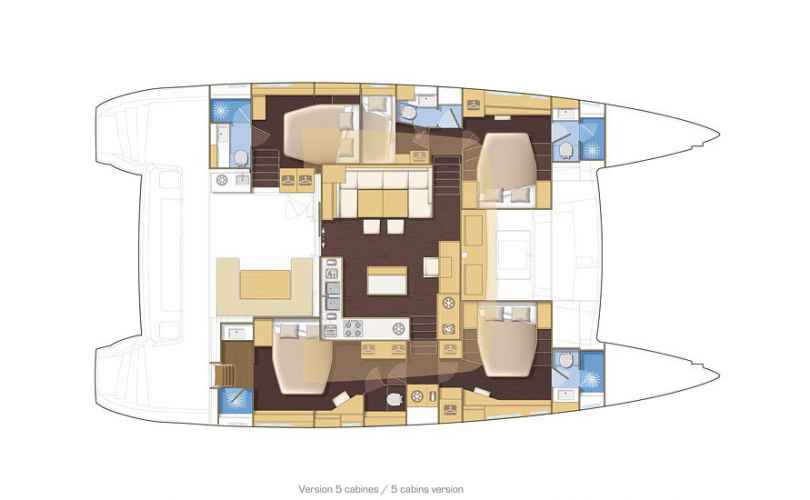

Layout Diagram
Inventory
Vessel Description
- Step aboard the Lagoon 560 S2, a premier sailing catamaran that blends luxury, performance, and smart design.
- Created by VPLP and styled by Nauta Design.
- S2 version includes up to five private cabins and a choice between a center island galley or port hull configuration.
- Separate crew accommodations.
- Spacious living areas, sleek styling, and exceptional sailing performance.
Layout & Accommodations
- CHARTER with CENTRAL GALLEY (5 cabins, 5 heads)
- CREW CABIN IN PORT BOW COMPARTMENT (berth, sink, shower, toilet)
- Comfort Configuration:
- BLINDS ON AFT CABIN COMPANIONWAY
- Port Hull 4 Cabin Version
- Forward Port Cabin: Access From The Saloon Via Forward Port Steps; Closing Cabin Via A Sliding Door; 1 Queen Size Bed – 2.05 X 1.60 M (6’9” X 5’3” Ft) – With Side Access; Under Bed Slats; Inboard Head Board Shelf With Storage From Above + Glass Holder; 2 Drawers Under Bed; High Cabinet In 2 Parts: Upper Part: 2 Hanging Lockers With Light And Shelves; Lower Part: 3 Drawers; L Shape Bookshelf On 2 Levels, Outboard Side Shelves (optional Tv); L Shape Shelf At Desk Height Along Outboard Side; Desk + Flap; 3 Shoes Storage Under Shelf + Storage Under Shelf; 1 Opening Port Hole; 1 Large One Way Fixed Hull Window; Blind Window Curtains (optional Opaque Blind); 2 Opening Deck Hatches With Mosquito Screen And Blind; Direct Access To The Bathroom, Via The Shower With Mirror Behind Door; Minimum Headroom 2.05 M (6’9” Ft); 1 220v Outlet At Desk; Upholstered Panels On Ceiling Liners; General Cabin Lighting With Two Way Switch By Bed Side And Reading Lights; Indirect Lighting Under 1st Shelf Level And Under Coving; 2 Way Switch Bedside Storage And Cabin Entrance
- Forward Port Bathroom (4 Cabin Version): Access To The Bathroom By The Cabin; Solid Resin Countertop And Washbasin (color: White); Fountain Mixer Tap; Locker Under Sink; Teak Floor; Locker, Outboard Side Mirror; Fresh Water Manual Toilet; Holding Tank In Inboard Side Locker; Toilet Paper Holder; Soap Holder; Headroom 2.05m (6’9”); Separate Shower With Plexiglas Door; Storage In Shower Composite Block; Teak Floor In Shower; Hull Porthole In Shower; Teak Settee; Opening Deck Hatch With Mosquito Screen And Blind; 3 Spotlights
- Aft Port Cabin (4 Cabin Version): Access From The Cockpit By Sliding Glass Door (with Optional Blind); 1 Double Bed – 2.05 X 1.60 M (6’9” X 5’3”) – With Lateral Accesses; Under Bed Slats; 2 Storage Lockers Under The Bed; Inboard Head Board Shelf With Storage From Above + Bottle And Glass Holder; 2 Parts Full Height Locker: Upper Part: 2 Hanging Lockers With Light + Shelves; Lower Part: Shelves; Outboard Head Board Shelf With Bottle And Glass Holder; Inboard Head Board Shelf, Indirect Light (with Optional Tv); 1 Opening Hull Porthole; Bookshelf On 2 Levels; 1 Large Fixed Plexiglas Window With One Way View; Opaque Window Curtains (optional Blind); 2 Opening Deck Hatches With Mosquito Screens And Blinds; Desk + Flap; 3 Drawers Under Desk; Direct Access Door To The Bathroom, With Full Height Mirror On Cabin Side; Minimum Headroom 2.05m (6’9”); 1 220v Socket At The Desk; Inner Planked Ceilings; General Cabin Lighting With 2-way Switch By Bedside And Reading Lights; Indirect Lighting Under 1st Level Of Shelves And Under The Coving; 2-way Switch At Head Board Shelf And Cabin Entrance
- Aft Port Bathroom (4 Cabin Version): Access To The Bathroom By The Cabin; Solid Resin Countertop And Washbasin (color: White); Normal Mixer Tap; Upper Locker With Sliding Mirror In Front Of Storage Or Glass Front + Porthole; Under Sink Locker; Teak Floor; Inboard Large Fixed Mirror; Fresh Water Manual Toilet; Holding Tank In Inboard Side Locker; Toilet Paper Holder; Soap Holder; Headroom 2.05m (6’9”); Separate Shower With Plexiglas Door; Storage In Shower Composite Block; Teak Floor In Shower; Hull Porthole In Shower; Teak Settee; Opening Deck Hatch With Mosquito Screen And Blind; 3 Spotlights
- Port Hull 5 Cabin Version
- Forward Port Cabin (5 Cabin Version): Access From The Salon From Forward Port Companionway; 1 Double Bed – 2.05 X 1.60 M (6’9” X 5’3”) – With Lateral Accesses; Under Bed Slats; Head Board Shelf With Storage From Above + Bottle And Glass Holder; 2 Storage Drawers Under Bed; Hanging Locker With Shelves; Shelves, Bookshelf On 2 Levels (or Optional Tv); Shelf, At Desk Height Along Outboard Side; Desk + Flap; Optional Settee; 2 Shoe Storages Under Shelf; 1 Opening Hull Porthole; 1 Large Fixed Plexiglas Window With One Way View; Blind Window Curtains; 1 Opening Deck Hatch With Mosquito Screen And Blind; Direct Access Door To The Bathroom, From The Shower, With Full Height Mirror On Cabin Side; Minimum Headroom 2.05m (6’9”); 1 220v Socket At The Desk; Inner Planked Ceilings; General Cabin Lighting With 2-way Switch By Bedside And Reading Lights; Indirect Lighting Under 1st Level Of Shelves And Under The Coving; 2-way Switch At Head Board Shelf And Cabin Entrance
- Forward Port Bathroom (5 Cabin Version): Access To The Bathroom By The Cabin; Solid Resin Countertop And Washbasin (color: White); Fountain Mixer Tap; Locker Under Sink; Teak Floor; Locker, Outboard Side Mirror; Fresh Water Manual Toilet; Holding Tank In Inboard Side Locker; Toilet Paper Holder; Soap Holder; Headroom 2.05m (6’9”); Separate Shower With Plexiglas Door; Storage In Shower Composite Block; Teak Floor In Shower; Hull Porthole In Shower; Teak Settee; Opening Deck Hatch With Mosquito Screen And Blind; 3 Spotlights
- Aft Port Cabin (5 Cabin Version): Access From The Cockpit By Sliding Glass Door (with Optional Blind); 1 Double Bed – 2.05 X 1.60 M (6’9” X 5’3”) – With Lateral Accesses; Under Bed Slats; 2 Storage Lockers Under The Bed; Inboard Head Board Shelf With Storage From Above + Bottle And Glass Holder + Front Door; 2 Parts Full Height Locker: Upper Part: 2 Hanging Lockers With Light + Shelves; Lower Part: Shelves; Outboard Head Board Shelf With Bottle And Glass Holder; 1 Opening Hull Porthole; Bookshelf On 2 Levels; 1 Large Fixed Plexiglas Window With One Way View; Blind Window Curtains; 2 Opening Deck Hatches With Mosquito Screens And Blinds; Locker (with Optional Tv); 3 Drawers Under Desk; Direct Access Door To The Bathroom, With Full Height Mirror On Cabin Side; Minimum Headroom 2.05m (6’9”); 1 220v Socket On Bathroom Wall; Inner Planked Ceilings; General Cabin Lighting With 2-way Switch By Bedside And Reading Lights; Indirect Lighting Under 1st Level Of Shelves And Under The Coving; 2-way Switch At Head Board Shelf And Cabin Entrance
- Aft Port Bathroom (5 Cabin Version): Access To The Bathroom By The Cabin; Solid Resin Countertop And Washbasin (color: White); Normal Mixer Tap; Upper Locker With Sliding Mirror In Front Of Storage Or Glass Front + Port Hole For View To The Transom; Locker Under Sink; Teak Floor; Inboard Large Fixed Mirror; Fresh Water Manual Toilet; Holding Tank In Inboard Side Locker; Toilet Paper Holder; Soap Holder; Headroom 2.05m (6’9”); Separate Shower With Plexiglas Door; Storage In Shower Composite Block; Teak Floor In Shower; Hull Porthole In Shower; Teak Setter; Opening Deck Hatch With Mosquito Screen And Blind; 3 Spotlights
- Heads (Bathrooms): 5
- Staterooms: 5
- Berths: 8

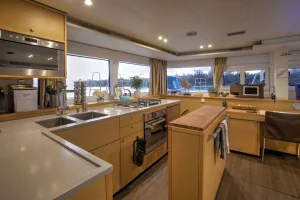

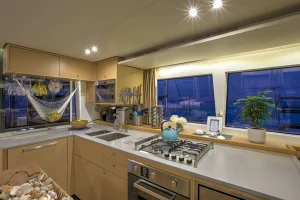

Galley
- 2 ADDITIONAL STOOLS
- ADDITIONAL S/S FREEZER 26 US GAL
- DISH-WASHER 110V
- WINE CELLAR 12 BOTTLES
Deck Equipment
- AFT COCKPIT & AFT BEAM CUSHIONS
- FORWARD COCKPIT CUSHIONS
- SUNLOUNGING PADS ON FLYBRIDGE
- 4 OCEANLED UNDERWATER SPOT LIGHTS
- ADDITIONAL SWIMLADDER WITH 2ND HOT & COLD SHOWER
- BIMINI ON HELM STATION with LED LIGHTS
- FLYBRIDGE FURNITURE (COCKPIT SETTEE, CUSHIONS, FRIDGE)
- ICE MAKER 110V IN COCKPIT
- Transoms: 2 Handrails + 1 Shower (hot Water / Cold Water) In Starboard Transom
- 1 Removable Folding Swim Ladder + Cover In Starboard Transom. Storage In Starboard Engine Room.
- Cockpit And Salon On One Level (no Steps)
- Non Skid Cockpit Floor (or Optional Cockpit Floor In Teak)
- U-shaped Settee With 3 Storages.
- Polished Teak Cockpit Table
- Cockpit Locker On Portside Of The Cockpit: 1 Door, 1 Sink + Mixer Tap, White Resin Countertop (optional Ice Maker Or Cockpit Fridge 80l / 21us Gal).
- 16 Spotlights Recessed In Hard Top Ceiling
- Aft Crossbeam With 3 Storage Lockers And Room For 2 X 10-person Life Rafts, Stainless Steel Railing, Storage For Gas Bottle (13kg / 28lbs)
- 3 Storage Lockers With Access From The Cockpit
- Flybridge Access From Cockpit By Stair With Teak Steps On Stainless Steel Frame
- Flybridge Access Closing System
- 1 Helm Station Including: 1100mm (3’7”) Diameter Steering Wheel; Navigation Instruments Pod; Engine Throttle And Control Panels On Steering Station; Seat For 2 Persons; 1 Compass; Windlass Control On Steering Station
- All Lines Led To Forward Part Of The Flybridge Around 4 Winches.
- 4 Line Storage Boxes
- Recessed Sun Lounging Area On Aft Of Flybridge, With Storage.
- 2 Large Hatches, 1 Large Storage Under The Sun Lounging Area
- L-shaped Settee
- Foredeck: 1 Deck Hatch For Forward Technical Compartment Access Including: House Battery Bank; Dedicated Area For: Generator (optional), Chargers (optional), Inverter (optional)
- 1 Cockpit With U-shaped Settee
- 2000w 24v Electric Windlass On Deck With Horizontal Gipsy (12mm / 0.47 Inches Chain) And Remote Control
- Chain Locker To Starboard Of The Windlass.
- 4 lockers
- Composite Longitudinal Compression Beam Including: Anchor Chain Run, Forestay Chain Plate, Optional Staysail And Genaker Tack Fittings, 1 Mooring Cleat.
- Bow Lockers: Access From The Deck Through A Deck Hatch; Grey Painted; Stainless Steel Ladder
- Lighting
- 11 Mooring Cleats
- Harken Deck Gear
- 1 X 70 Mainsail Halyard Electric Winch At Starboard Of The Helm Station: Mainsail Halyard And Reefing Lines.
- 3 X 70 Manual Winches: 2 For Genoa Sheets And 1 For Reefing Lines And Traveler Lines
- Pulpits With Wooden Seats.
- 840mm (2’9”) Stanchions, Triple Lifelines, 1 Lifeline Gate On Each Side
- Teak Toerail
- Recessed Deck Hatches
- Port Holes
- Plexiglas Fixed Hull Windows
- Plexiglas Salon Windows
- Safety Glass Salon Sliding Door With White Lacquered Aluminium Frame + Sliding Window
- 1 Sets Of Safety Glass Window With Sliding Door To Access Aft Port Cabin, With Uv Protection
- 1 Aft Port Fixed Window With Panel
Electronics & Navigation
- NAVIGATION PACK B&G 2015
- MO 16T DISPLAY AT HELM STATION
- CHAIN COUNTER AT FLYBRIDGE
- AIS CLASS B TRANSCEIVER B&G
- B&G AUTOPILOT REMOTE SMART CONTROL
- FUSION RADIO DVD/CD MP3 PLAYER + 6 SPEAKERS (Salon, Cockpit, Flybridge) with REMOTE
- B&G MO 18T DISPLAY AT NAV STATION
- RADAR B&G BROADBAND 4G
- VHF B&G RS90 DOUBLE HANDSET
- VHF CABLE AND ANTENNA IN MAST
- Chart Table
- Navigation Table With Storage Underneath
- 3 Drawers On Starboard.
- 1 Access To Electric Panel
- 1 Seat With Rotating Back – Can Be Stored Under The Chart Table.
- 2 Foldable Panels (1 Panel For Electrical Screen And 1 panel For Optional Electronic Equipments) Into The Shelving Each Side Of The Mast Post
- 1 220 V Outlet.
Electrical, Power & Plumbing
- 8 SOLAR PANELS 120W
- ADDITIONAL SURGE PROTECTION
- ONAN GENSET 9.5Kva 1800rpm 220V / 60HZ + COCOON
- PACK FOR 3 INVERTERS 24/110V – 60 Hz 3 x 3000 VA
- USB SOCKETS CABINS
- WATERMAKER 74G/H SEA RECOVERY AQUAMATIC 220V
- TECMA ELECTRICAL TOILETS FRESHWATER
- REVERSE CYCLE CHILLED WATER AIR CONDITIONING 72,000 BTU
- GEL SERVICE BATTERIES 840 AMP 24V
- 2 BATTERY CHARGERS 24V 100AMP EACH + ALTERNATORS 24V
- 3 ELECTRICAL WINCHES 70.2 ON FLYBRIDGE IN LIEU OF STANDARD
- FANS IN SALON AND CABINS
- LEATHER BULKHEAD ORGANIZERS IN CABINS
- FUSION RADIO USB PLAYER + SPEAKERS IN SALON, COCKPIT, FLYBRIDGE & REMOTE
- ELECTRICAL FLYBRIDGE DOOR
- FRESHWATER DOCK INLET
- INDIRECT LIGHTING IN CABINS & SALON
- 4 Fresh Water Tanks – 960 L (254 Us Gal) Total Under Cabin Floors
- Fresh Water Circuit With 2 X 24v Pressure Pumps (located In Engine Compartments)
- 2 X 40 L (10,56 Us Gal) Electric Water Heaters 220v/engine Exchanger
- 1 Transom Shower (hot/cold) On Starboard Transom.
- 2 Water Fillers On Deck
- Grey Water: Shower And Washbasin Drain To Grey Water Collection Box Automatic Pump Out With Float Switch; Galley And Cockpit Sinks Drain Directly Overboard.
- Black Water: 1 Holding Tank Per Toilet (73l / 19usgal) With Deck Pump Out Or Gravity Drain To Sea.
- Electric Fresh Water Toilet In Owner’s Head
- Manual Fresh Water Toilet In All Other Heads.
- Bilge Pump System: Self Bailing Cockpit Following Ec Regulation; 1 Bilge Pump With Auto Float Switch And Manual Override + Bilge Level Alarm In Each Hull; 1 Manual Bilge Pump For Use From The Cockpit; 1 Bilge Pump In Each Engine Room With Auto Float Switch.
- Led Lights In The Boat
- 220 V Ac Circuit
- 1 Outlet Per Cabin (owner’s Cabin: 2), 4 In The Saloon, 4 In The Galley, 1 Per Engine Compartment, And 1 In The Technical Compartment
- Touchscreen 15” For Running 220 V And 24 V Onboard.
- 1 Power Source Selector + Voltmeter
- 30 Amp Dock Inlet In The Aft Transom With 15 M (49,21 Ft) Shore Power Cord
- 24 V Circuit Including: 24 V 420 Ah Gel Service Battery Bank (840 Ah Optional)
- Breaker-box For The 24v System In Generator Compartment.
- 2 Engine Driven 24v 110 Ah Mastervolt Alternators
- Plumbing: Fresh Water, Grey Water, Black Water systems as detailed above.
Engine & Mechanical
- DOUBLE ELECTRONIC ENGINE THROTTLES AT NAV STATION with PANELS
- TUNNEL BOW THRUSTER AT STB SIDE (NOT WITH CREW CABIN IN BOW)
- EXTRA FOR 2 X 110HP YANMAR 4JH4-110 WITH STRAIGHT SHAFT
- Engine Access Through Large Deck Hatches Stainless Steel Gas Struts On Hatches
- 2 Yanmar 75 Hp Diesel Engines – Sail Drive
- Engine Throttles And Control Panel On Steering Station On Flybridge
- 2 Fixed Propellers
- Ventilation System (natural Aspiration And Forced Extraction)
- 1 X 220 V Outlet Per Engine Room
- 2 Engine Room Lights
- Sound Insulation Of Engine Compartments: Foam On Bulkheads
- Diesel Capacity: 2 Stainless Steel Fuel Tanks: 1300 L Total (343 Us Gal), Under Floors Forward Of The Engine Rooms Bulkheads
- Fuel Fillers Caps And Vents On Aft Crossbeam.
- Equipment Includes: Electric Gauges; Fuel Filter Systems: Pre-filter With Water Separator And Primary Filter; Remote Fuel Shut Off Valve In Aft Port And Aft Starboard Cabins.
- DOUBLE ELECTRONIC ENGINE THROTTLES AT NAV STATION with PANELS (listed twice in source)
Sails & Rigging
- CODE 0 GEAR
- EXTRA FOR HYDRANET SQUARETOP MAINSAIL & GENOA in lieu of Standard
- LAZY BAG WITH COVER NATURAL
- Mast / Rigging: Anodized Aluminium Mast And Boom With Track And Traveler; Double Spreader Rig; 2 Shrouds With Chafe Guards; 2 Lower Shrouds With Chafe Guards; 1 Forestay With Manual Furler; 1 Forestay Staysail; Anodized Aluminium Transversal Crossbeam; Adjustable Lazy-jacks With Spreaders; Composite Longitudinal Beam
- Sails: Full Batten Mainsail: 125 M² (1345 Sq Ft) « Dymension Polyant » Type Dacron, Double Thickness, 3 Reefs; Lagoon Logo Printed In The Mainsail; Furling Genoa: 82 M² (883 Sq Ft) « Dymension Polyant » Type Dacron, Double Thickness, Uv Protective Strip
- Running Rigging: 1 Double Purchase Spectra Mainsail Halyard; 1 Spectra Genoa Halyard With Tension Adjustment Track At Mast Base; 1 Boom Topping Lift; 3 Reefing Lines; Genoa Sheets; Mainsail Sheet Led Back To Winches Via Boom; Main Traveler Adjustment Next To Port Side Winches; Manual Genoa Furler
- 1 X 70 Mainsail Halyard Electric Winch At Starboard Of The Helm Station: Mainsail Halyard And Reefing Lines.
- 3 X 70 Manual Winches: 2 For Genoa Sheets And 1 For Reefing Lines And Traveler Lines
Dimensions & Capacities
- Overall Length: 56 ft
- Beam (Width): 31 ft
- Draft: 4 ft
- Displacement: 66812 lbs
- Fuel Capacity: 344 gal
- Water Capacity: 252 gal
- Diesel Capacity (alternate source): 2 Stainless Steel Fuel Tanks: 1300 L Total (343 Us Gal)
Construction & Hull
- Hull Material: Fiberglass Reinforced Plastic- FRP
- Generator: Onan Genset
- Anodized Aluminium spars and transverse crossbeam
- Hull Decoration: 1 Grey Waterline Stripe; 1 Grey Stripe At Hull Port Holes Level; Lagoon Logo On Roof Sides; Name Of The Boat On Transom Steps On Both Sides And At The Back Of The Flybridge
Additional Equipment & Features
- FUSION RADIO USB PLAYER + SPEAKERS IN SALON, COCKPIT, FLYBRIDGE & REMOTE
- CHARTER with CENTRAL GALLEY (5 cabins, 5 heads) (listed in multiple sections)
- CHAIN COUNTER AT FLYBRIDGE
- ELECTRICAL FLYBRIDGE DOOR
- INDIRECT LIGHTING IN CABINS & SALON
- 4 OCEANLED UNDERWATER SPOT LIGHTS (listed also under Deck Equipment)
- ICE MAKER 110V IN COCKPIT (listed also under Deck Equipment)
- BIMINI ON HELM STATION with LED LIGHTS (listed also under Deck Equipment)
- SUNLOUNGING PADS ON FLYBRIDGE (listed also under Deck Equipment)

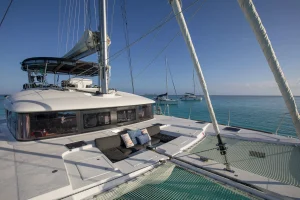

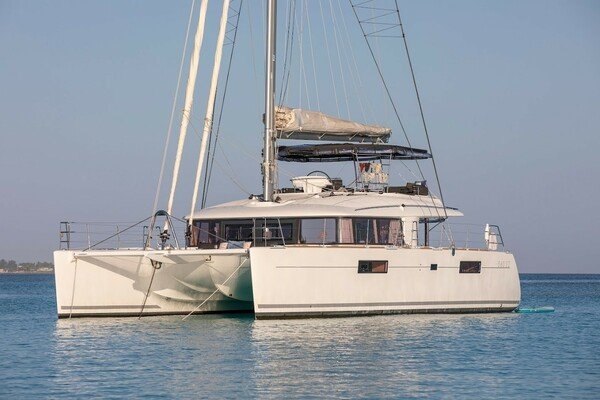

Exterior Photos
