S/V Rhatcat is a Hampton, VA based 2003 Morrelli and Melvin 47 Custom For Sale By Owner. This owner requires financial settlement only. No trades.
Yacht survey by Coastal Marine LLC. 5/20/22 at Key Largo FL. during our haul-out. ($438,800 Survey Market Value)
Rhatcat is an Morrelli and Melvin 46 design catamaran for sale by owner. She is a liveaboard / cruiser with 26’ beam (wider is better). Built with the cruising couple in mind that can easily be singlehanded.
Yacht designers Morrelli and Melvin are known for performance catamarans. Rhatcat is typical, reaching 17 knots plus. I’ve experienced that 3 times and it wanted to pick up even more. I’m not a racer, so I had to spill the wind! Well constructed and designed!
I’ve been 23 yrs aboard and sailed 15 yrs in the Caribbean, newly back in the States. The wife wants to be land based now and at the young age that I am (72) I guess it’s time, and I’m building a new house, so the boat has to go! That’s the reason for selling. I’ve been boating for the best of 38 – 40 yrs. (It’s time).
Now onto the boat!
Recent Updates
- New hatch covers installed 2024
- New 5 cu ft freezer November 23
- New Renogy 3000 w installed 2022
- (3) 280 amp (total 840ah) lithium batteries installed with BMS June of 22
- Bottom paint June 2025
Specifications
| Name | S/V Rhatcat |
| Make | Morrelli and Melvin |
| Model | 47 Custom |
| Year | 2003 |
| Type | Multihull Sailboat |
| Designer | Morrelli and Melvin |
| Cabins | 2 |
| Heads | 2 |
| Galley | Down |
Dimensions
| Loa | 47' |
| Lwl | 42 ft 8 in |
| Beam | 26' |
| Headroom | 6'4" salon, 6'7" Hulls |
| Draft | 4' |
| Mast Height | 65' |
| Bridgedeck Clearance | 3' |
Tankage
| Fuel Tanks | 170 gal (2 x 85 gal each tank) |
| Water Tanks | 200 gal (2 x 100 gal each tank) |
| Holding Tanks | 40 gal. discharge with y-valve overboard or pump out. |
Performance
| Engines | Beta Marine (2) 30 HP diesels |
| Engine Hours | 1958 hrs |
| Fuel Consumption | ½ to ⅝ gal. per hr. at 2200 to 2600rpm |
| Speed | 17 knots |
| Sails | Asymmetrical spinnaker |
Inventory
Accommodations

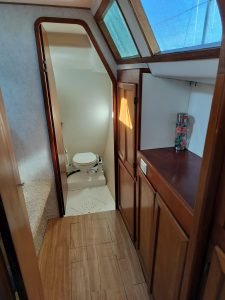

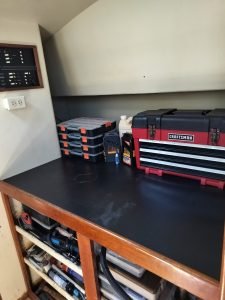

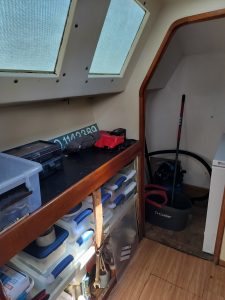

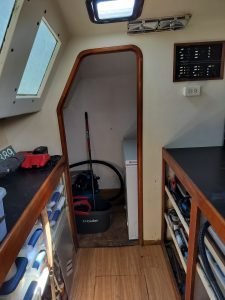

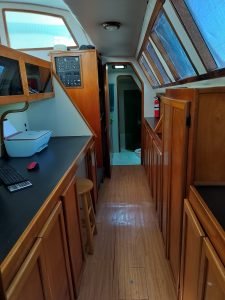

- 2 cabin / 2 head layout with 3rd cabin converted to workroom
- 1.5 ton heat pump (use generator or shore power)
- Washer and spinner (nice to have clean close while at anchor)

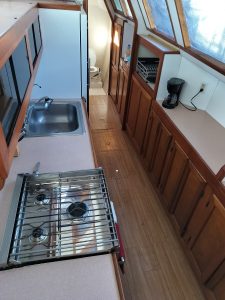

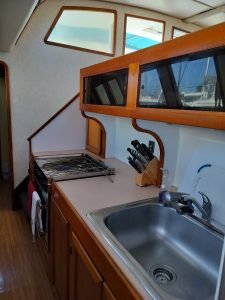

Galley
- 5 cu ft. freezer stand alone (so stock up) 120v
- Refrigerator stand alone 13.2 cu. Ft. on 12v
- Dc 3 burner oven/cooktop (makes great bread)
- Hot water tank 6 gal. (use generator)

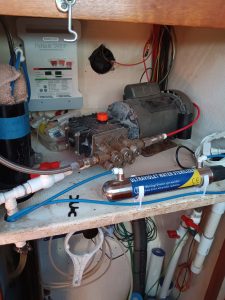

- 40 gal. desalinator with UV sterilizer (water maker) (use generator)
- 4 LP tanks 20 # ea.
- BBQ grill
Electronics
- Furuno Radar,
- Raymarine tri data wind / depth / speed
- Timezero charting (radar and charting overlay laptop computer)
- CPT auto-pilot
Electrical
- Lithium batteries house bank 540ah (usable 460ah)
- 1340 kw solar. Plenty enough to stay at anchor (as I’ve done for 17 yrs)
- 4300 generator
- 2 KISS wind generators
- 60 amp lithium battery charger
- Victron battery meter (always to check battery levels)
- 2 - 30 amp shore cords
Sails & Rigging
- Sails new 4 yrs. old
- Asymmetrical spinnaker w/Selden top down furler
- 6’ bowsprit
Engines & Mechanical
- Beta Marine (2) 30 hp diesel (1958 hrs.)
- Hurth v-drive trans.
- 1 ⅛” stainless shaft
- Kiwi adjustable 16” feathering props
- Fuel polishing system (able to transfer fuel from one tank to another and clean the fuel within each tank)
- 2 day tanks 12 gal each (each engine uses ½ to ⅝ gal. per hr. at 2200 to 2600rpm)
- 10 hr run time uses about 5 to 7 gal per engine
- Open ocean I run 1 engine at a time
- Unless sea conditions or wind say differently ( then I put both in gear)
- The idea is to sail as much as possible!
Tender
- 12’ custom dinghy (fiberglass aka tank)
- 18 hp outboard Nissan Marine
Anchor & Docking
- Mantas 50# anchor
- Bruce 60# claw anchor
- Fortress FX-55 storm anchor
- Spade anchor 44# (new not used yet)
- 150’ ACCO G-43 HT
- 125’ rode 1” 3 strand nylon
Miscellaneous
- A complete underwater breathing hookah to make zinc replacements and bottom work or enjoy 100’ look around
- Hook it to the house bank or put it into the dinghy with a battery and go explore!
- When I would clean the bottom and use the hookah, I would run under water non-stop about 4 hrs at a time
- All that is on and pertaining to the boat will be included tools and extras, all in good order

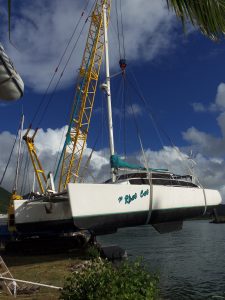

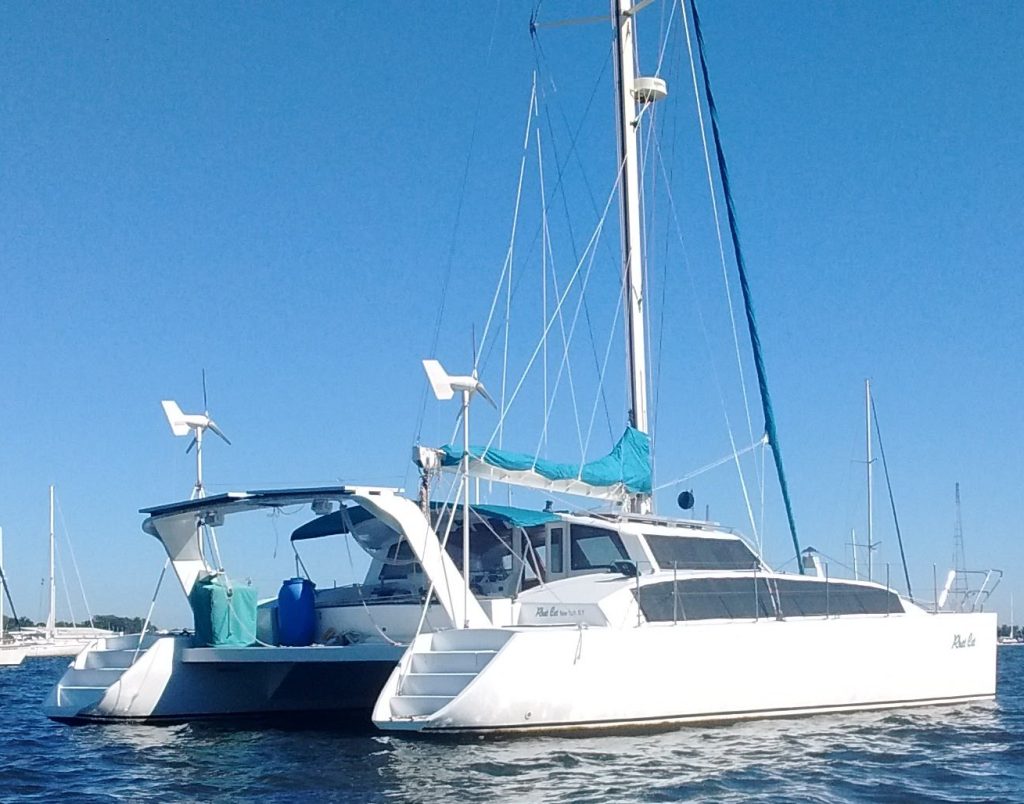

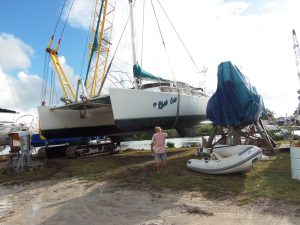

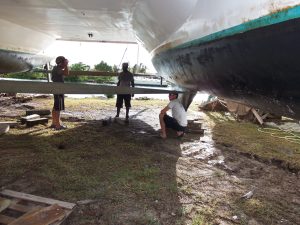

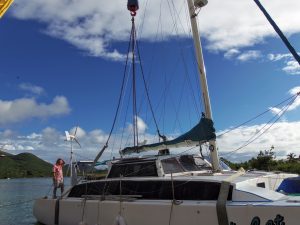

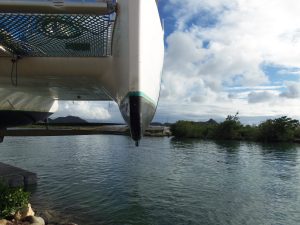

Exterior Photos

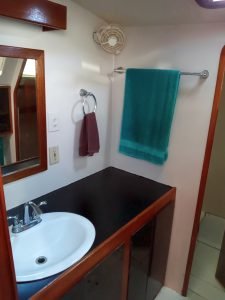

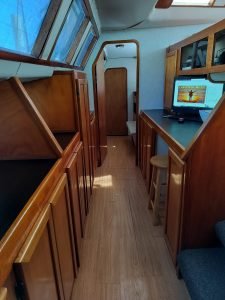

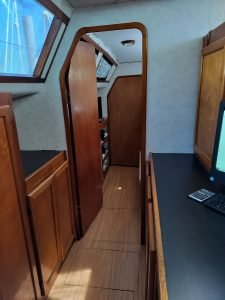

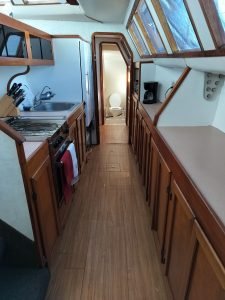

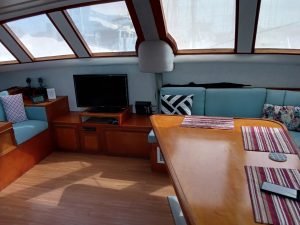

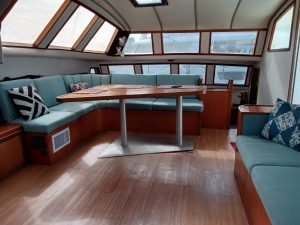

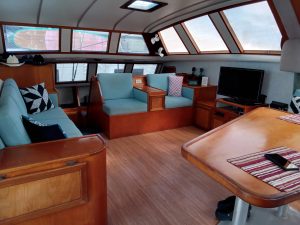

Interior Photos

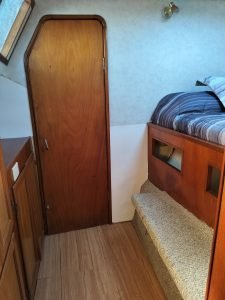

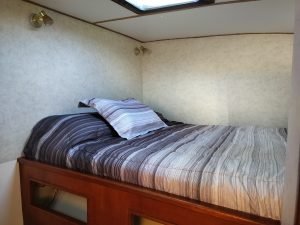

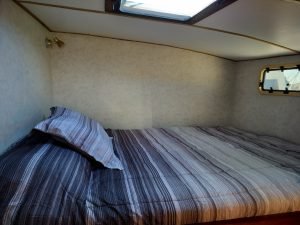

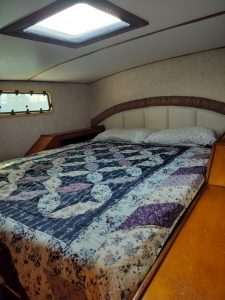

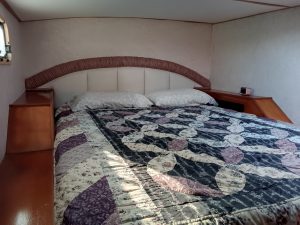

Cabin Photos
